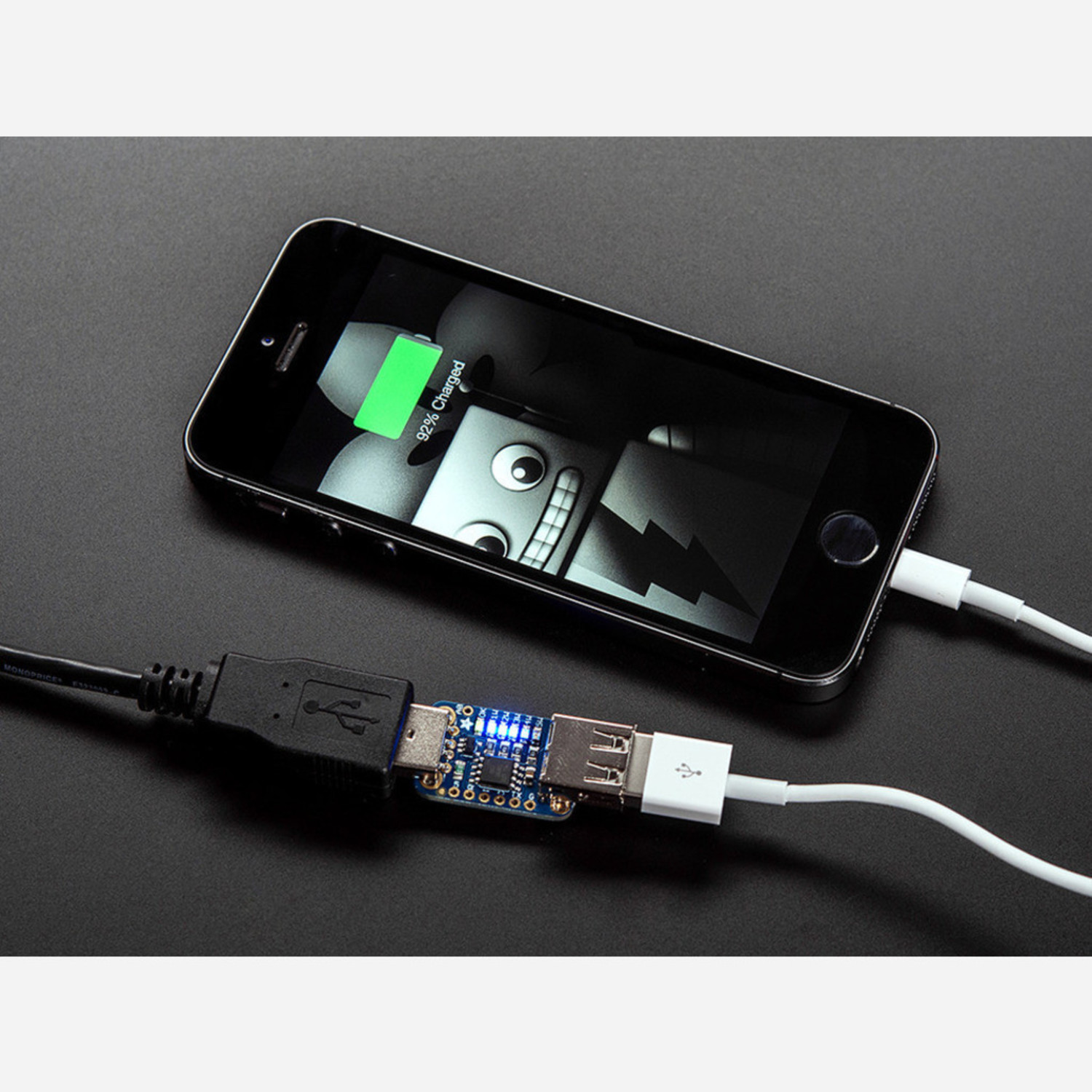

The isolator provides power only to the Feather M0 Express. In some cases, a person with appropriate experience will find it easy to modify one of our boards to operate way outside its nominal range, but that's an at-your-own-risk thing. This makes it perfect for your BitScope Micro USB! Protect your computer or laptop, use one of these in between your ports. The DAQ/ADC is powered by an isolated low noise DC supply. New CNC Machining Technique from Thermwood Mirrors Layered 3D Printing Processes. The USB Isolator is particularly useful when paired with USB testing instruments, where you need to separate or isolate your earth ground (through the USB connector to the computer to the power plug) from your circuit for high voltage, accident-protection, or floating ground needs.īest of all, this USB isolator even has its own isolated 5V power supply that can supply 100mA. 3D Printing News Reader & Search » show all. 1 GS/s 50 MHz 4-channel Digital Oscilloscope - Rigol DS1054Z - Rigol DS1054Z. A good reason for electrical isolation may be the. Add to Cart, Adafruit USB Isolator - 100mA Isolated Low/Full Speed USB. Check your product to make sure its low/full compatible. This may be particularly the case if one of your I2C device is dealing with high voltage circuiterie. Works with any 1.5Mbps (low speed) or 12Mbps (full speed) USB device.ĭoes not work with high speed USB devices (often used for video cameras).
Power and signal isolation improves common-mode voltage, enhances noise rejection, and permits two circuits to operate at different voltage levels. See license.txt for additional information.Do you have a USB logic analyzer, multimeter or oscilloscope and find yourself bumping up against the frustation of a shared earth ground? This handy little low-cost USB isolator is exactly what you need to provide protection against harmful noise, ground loops, surges, and spikes.
ADAFRUIT USB ISOLATOR CASE FULL
Combining high speed CMOS and monolithic air core transformer technology, these isolation components provide outstanding performance characteristics and are easily integrated with low and full speed USB-compatible peripheral devices. Please support Adafruit and open-source hardware by purchasingĬreative Commons Attribution, Share-Alike license, check license.txt for more informationĪll text above must be included in any redistributionĪdafruit invests time and resources providing this open source design, please support Adafruit and open-source hardware by purchasing products from ( )!ĭesigned by Limor Fried/Ladyada for Adafruit Industries.Ĭreative Commons Attribution/Share-Alike, all text above must be included in any redistribution. The ADuM4160 is a USB port isolator, based on Analog Devices, Inc., iCoupler® technology. Use a USB isolator module such as this one from adafruit or this one from. The format is EagleCAD schematic and board layoutĪdafruit invests time and resources providing this open source design, Power and signal isolation improves common-mode voltage, enhances noise rejection, and permits two circuits to operate at different voltage levels. This is always the case for ATX power supplies and may be the case for other. Not for high speed USB devices, often used for video cameras (check your product to make sure its low/full compatible) Based on Analog Device's USB isolators Adafruit USB Isolator - 100mA Isolated Low/Full Speed USB Adafruit 2107 Have. Works with any 1.5Mbps (low speed) or 12Mbps (full speed) USB device. SMT Breakout PCB Set For SOT-23, SOT-89, SOT-223 and TO252 Adafruit 1230. This handy little low-cost USB Isolator is exactly what you need to provide protection against harmful noise, ground loops, surges, and spikes. Diff line -1,15 +1,18 Adafruit -USB -Isolator -PCBįormat is EagleCAD schematic and board layoutĬlick here to purchase one from the Adafruit shopįor more details, check out the product page at
